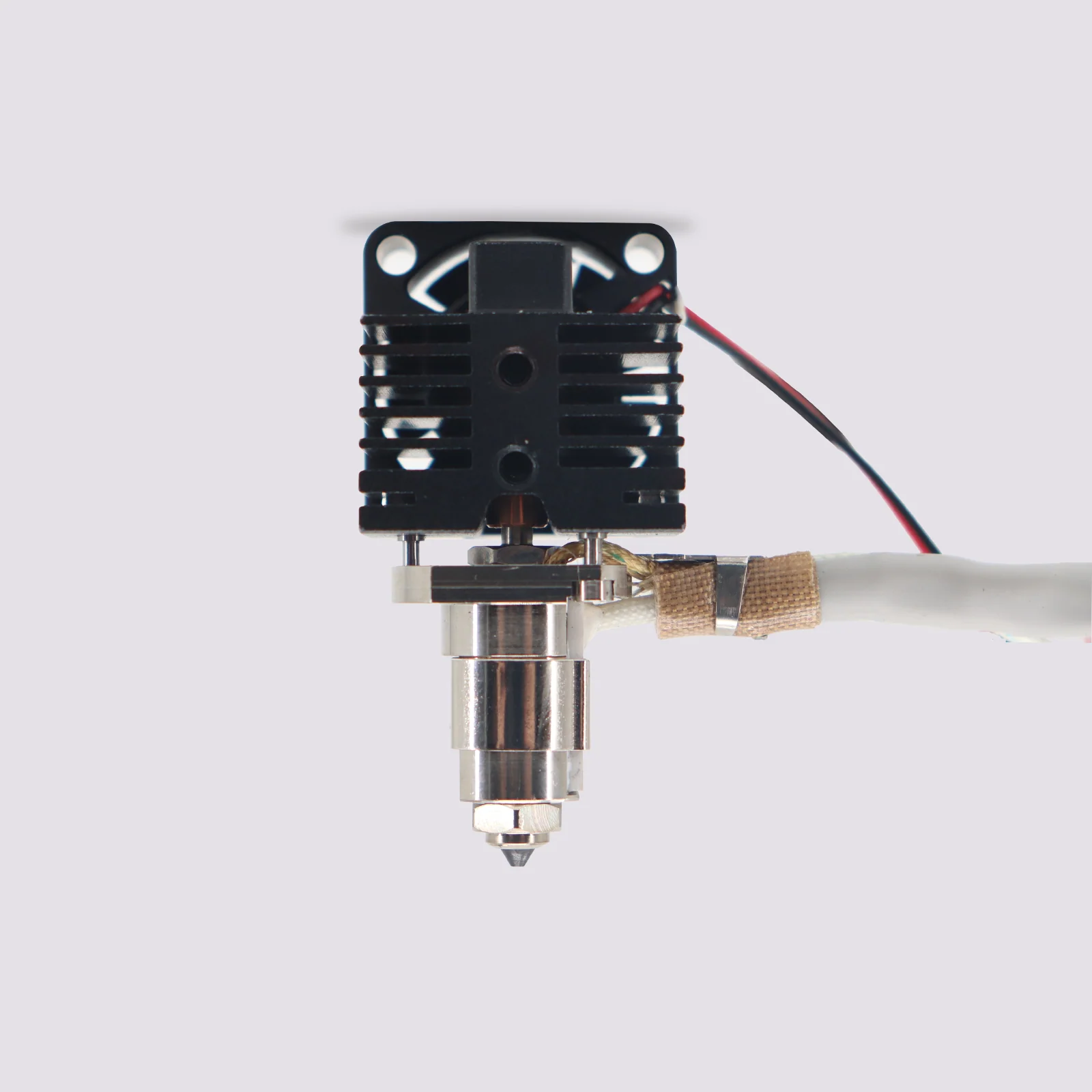

X-Max 3/X-Plus 3/X-Smart3 hot end V2.5
Upgraded Hot End V2.5 for MAX3/PLUS3/X-Smart3, including protector andĀ Bi-metal Nozzle.
This hot end is also compatible with copper, brass and hardened steel nozzles, and the X-Max 3/X-Plus 3/X-Smart 3 Hot End Protector.
Bi-metal nozzles and Tungsten Carbide Nozzle are only compatible with this hot end V2.5.
Because of the different heating methods of the hot end, please refer to the table below to modify the PA value and temperature when printing some filaments.
| Filament | Pressure advance | Temperature |
|---|---|---|
| PLA | 0.042 | 210ā |
| ABS | 0.035 | 260ā |
| ASA | 0.035 | - |
| PC/ABS | 0.082 | - |
| PETG | 0.086 | - |
X-Max 3/X-Plus 3/X-Smart3 hot end V2.5
Upgraded Hot End V2.5 for MAX3/PLUS3/X-Smart3, including protector andĀ Bi-metal Nozzle.
This hot end is also compatible with copper, brass and hardened steel nozzles, and the X-Max 3/X-Plus 3/X-Smart 3 Hot End Protector.
Bi-metal nozzles and Tungsten Carbide Nozzle are only compatible with this hot end V2.5.
Because of the different heating methods of the hot end, please refer to the table below to modify the PA value and temperature when printing some filaments.
| Filament | Pressure advance | Temperature |
|---|---|---|
| PLA | 0.042 | 210ā |
| ABS | 0.035 | 260ā |
| ASA | 0.035 | - |
| PC/ABS | 0.082 | - |
| PETG | 0.086 | - |
